Linear Potentiometer 13mm

Open Monday - Thursday 8:30 - 17:00 | Friday 8:30 - 16:00

Free UK Shipping For Orders Over £50

Worldwide Shipping

Technical Support

Purchase within to get your order delivered 22nd of May 23rd of May (UK Only)
SKU Product Title Stock Qty Unit Price
MS13-0019 Linear Potentiometer MS-13C 0-25mm 4-20mA IP67 1M cable 5 £268.42
View Product Information
MS13-0020 Linear Potentiometer MS-13C 0-50mm 4-20mA IP67 1M cable 5 £268.42
View Product Information
MS13-0022 Linear Potentiometer MS-13C 0-100mm 4-20mA IP67 1M cable 5 £286.68
View Product Information
MS13-0025 Linear Potentiometer MS-13M 0-25mm IP65 1M cable 5 £205.12
View Product Information
MS13-0026 Linear Potentiometer MS-13M 0-50mm IP65 1M cable 5 £205.12
View Product Information
MS13-0027 Linear Potentiometer MS-13M 0-75mm IP65 1M cable 5 £205.12
View Product Information
MS13-0028 Linear Potentiometer MS-13M 0-100mm IP65 1M cable 4 £223.38
View Product Information
MS13-0029 Linear Potentiometer MS-13M 0-125mm IP65 1M cable 5 £223.38
View Product Information
MS13-0030 Linear Potentiometer MS-13M 0-150mm IP65 1M cable 5 £223.38
View Product Information
MS13-0032 Linear Potentiometer MS-13M 0-200mm IP65 1M cable 7 £223.38
View Product Information

Linear Potentiometer 13mm

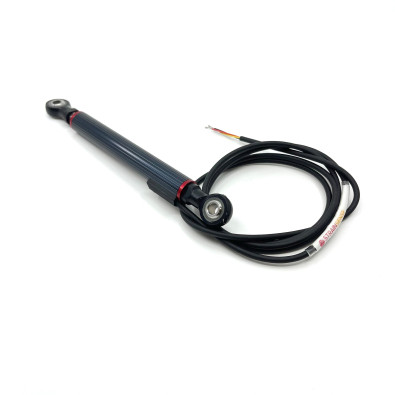

MS-13 compact linear potentiometer

  • Ranges 0-25 mm to 0-250 mm
  • 13 mm diameter housing
  • Rugged construction
  • Sealed up to IP67

Categories: Linear Potentiometers

From

£174.35 + VAT Prices May Vary

HELP & ASSISTANCE AVAILABLE ONLINE

£174.35 + VAT

Tiered pricing for the selected product:
Qty Price

Product Description

The MS-13 series of linear potentiometers are designed to withstand the harsh environments of motorsport, testing and industrial applications. Using proven 'Conductive Plastic' technology, the sensors offer high performance and reliability at operational temperatures up to +150°C. The rugged, yet compact 13-mm diameter MS-13 is available with stroke lengths up to 250 mm, optional flange mount, optional carbon fibre sleeves for shaft protection, a choice of potentiometer / potentiometric, current and regulated analogue outputs, sealing up to IP67.

SKU

SKU

MS-13
MPN

MPN

MS-13
Linearity

Linearity

<0.5% of measurement range
MTBF

MTBF

>25 Million cycles (depending on environment)
Repeatability

Repeatability

<0.01mm
Resolution

Resolution

Essentially infinite
Response Time

Response Time

10 m/s maximum
Supply Voltage (Amplified)

Supply Voltage (Amplified)

8-30VDC (4-20mA), 6-30VDC (0-5V output), 11-30VDC (0-10V output)
Supply Voltage (Potentiometric)

Supply Voltage (Potentiometric)

1-30 VDC
Operating Temperature

Operating Temperature

-40°C to +150°C (-40 to +85°C for amplified models)
Environmental Protection

Environmental Protection

Options of IP54, IP65, IP67
Dimensions

Dimensions

Body Diameter 13mm
Electrical Connection

Electrical Connection

3 or 6 wire Raychem 55A 26AWG FDR25 sleeved
Housing Material

Housing Material

Anodised Aluminium body, Stainless steel shafts
Mechanical Interface

Mechanical Interface

MS-13C Compact rod ends MS-13M Standard rod ends
Product Weight

Product Weight

69 to 121 grams depending on model
Tips & Hints

Tips & Hints

Always set up the Linear Potentiometer in accordance with the Instruction manual. Use a cable tie to change the cable orientation from rear to front facing. See data sheet for any other technical specifications.
RoHS Compliance

RoHS Compliance

Yes
Tariff Code (HTS)

Tariff Code (HTS)

90318020
Statement of Conformity

Statement of Conformity

The product detailed below complies with the specifications published by Strainsense. Where applicable it provides assurance that electrostatic discharge sensitive devices have been handled and packed under conditions that meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
COO Country of Origin

COO Country of Origin

GB

Product Features

Technical Resources
Click the resource buttons below to download the file.

Product Applications

  • Motorsport control monitoring
  • Vehicle and machine controls
  • Structural monitoring

Stock Quantity

SKU Product Title Stock Qty Lead Time Unit Price
MS13-0001 Linear Potentiometer MS-13C 0-25mm IP65 1M cable - 5 Wks £ 205.12

View
MS13-0002 Linear Potentiometer MS-13C 0-50mm IP65 1M cable - 5 Wks £ 205.12

View
MS13-0003 Linear Potentiometer MS-13C 0-75mm IP65 1M cable - 5 Wks £ 205.12

View
MS13-0004 Linear Potentiometer MS-13C 0-100mm IP65 1M cable - 5 Wks £ 223.38

View
MS13-0005 Linear Potentiometer MS-13C 0-125mm IP65 1M cable - 5 Wks £ 223.38

View
MS13-0006 Linear Potentiometer MS-13C 0-150mm IP65 1M cable - 5 Wks £ 223.38

View
MS13-0007 Linear Potentiometer MS-13C 0-25mm 4-20mA IP65 1M cable - 5 Wks £ 253.81

View
MS13-0008 Linear Potentiometer MS-13C 0-50mm 4-20mA IP65 1M cable - 5 Wks £ 253.81

View
MS13-0009 Linear Potentiometer MS-13C 0-75mm 4-20mA IP65 1M cable - 5 Wks £ 253.81

View
MS13-0010 Linear Potentiometer MS-13C 0-100mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0011 Linear Potentiometer MS-13C 0-125mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0012 Linear Potentiometer MS-13C 0-150mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0013 Linear Potentiometer MS-13C 0-25mm IP67 1M cable - 5 Wks £ 219.73

View
MS13-0014 Linear Potentiometer MS-13C 0-50mm IP67 1M cable - 5 Wks £ 219.73

View
MS13-0015 Linear Potentiometer MS-13C 0-75mm IP67 1M cable - 5 Wks £ 219.73

View
MS13-0016 Linear Potentiometer MS-13C 0-100mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0017 Linear Potentiometer MS-13C 0-125mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0018 Linear Potentiometer MS-13C 0-150mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0019 Linear Potentiometer MS-13C 0-25mm 4-20mA IP67 1M cable 5 - £ 268.42

View
MS13-0020 Linear Potentiometer MS-13C 0-50mm 4-20mA IP67 1M cable 5 - £ 268.42

View
MS13-0021 Linear Potentiometer MS-13C 0-75mm 4-20mA IP67 1M cable - 5 Wks £ 268.42

View
MS13-0022 Linear Potentiometer MS-13C 0-100mm 4-20mA IP67 1M cable 5 - £ 286.68

View
MS13-0023 Linear Potentiometer MS-13C 0-125mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0024 Linear Potentiometer MS-13C 0-150mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0025 Linear Potentiometer MS-13M 0-25mm IP65 1M cable 5 - £ 205.12

View
MS13-0026 Linear Potentiometer MS-13M 0-50mm IP65 1M cable 5 - £ 205.12

View
MS13-0027 Linear Potentiometer MS-13M 0-75mm IP65 1M cable 5 - £ 205.12

View
MS13-0028 Linear Potentiometer MS-13M 0-100mm IP65 1M cable 4 - £ 223.38

View
MS13-0029 Linear Potentiometer MS-13M 0-125mm IP65 1M cable 5 - £ 223.38

View
MS13-0030 Linear Potentiometer MS-13M 0-150mm IP65 1M cable 5 - £ 223.38

View
MS13-0031 Linear Potentiometer MS-13M 0-175mm IP65 1M cable - 5 Wks £ 223.38

View
MS13-0032 Linear Potentiometer MS-13M 0-200mm IP65 1M cable 7 - £ 223.38

View
MS13-0033 Linear Potentiometer MS-13M 0-225mm IP65 1M cable - 5 Wks £ 241.64

View
MS13-0034 Linear Potentiometer MS-13M 0-250mm IP65 1M cable - 5 Wks £ 241.64

View
MS13-0035 Linear Potentiometer MS-13M 0-25mm IP67 1M cable - 5 Wks £ 219.73

View
MS13-0036 Linear Potentiometer MS-13M 0-50mm IP67 1M cable - 5 Wks £ 219.73

View
MS13-0037 Linear Potentiometer MS-13M 0-75mm IP67 1M cable - 5 Wks £ 219.73

View
MS13-0038 Linear Potentiometer MS-13M 0-100mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0039 Linear Potentiometer MS-13M 0-125mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0040 Linear Potentiometer MS-13M 0-150mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0041 Linear Potentiometer MS-13M 0-175mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0042 Linear Potentiometer MS-13M 0-200mm IP67 1M cable - 5 Wks £ 237.99

View
MS13-0043 Linear Potentiometer MS-13M 0-225mm IP67 1M cable - 5 Wks £ 256.25

View
MS13-0044 Linear Potentiometer MS-13M 0-250mm IP67 1M cable - 5 Wks £ 256.25

View
MS13-0045 Linear Potentiometer MS-13M 0-25mm 4-20mA IP65 1M cable - 5 Wks £ 253.81

View
MS13-0046 Linear Potentiometer MS-13M 0-50mm 4-20mA IP65 1M cable - 5 Wks £ 253.81

View
MS13-0047 Linear Potentiometer MS-13M 0-75mm 4-20mA IP65 1M cable - 5 Wks £ 253.81

View
MS13-0048 Linear Potentiometer MS-13M 0-100mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0049 Linear Potentiometer MS-13M 0-125mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0050 Linear Potentiometer MS-13M 0-150mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0051 Linear Potentiometer MS-13M 0-175mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0052 Linear Potentiometer MS-13M 0-200mm 4-20mA IP65 1M cable - 5 Wks £ 272.07

View
MS13-0053 Linear Potentiometer MS-13M 0-225mm 4-20mA IP65 1M cable - 5 Wks £ 290.33

View
MS13-0054 Linear Potentiometer MS-13M 0-250mm 4-20mA IP65 1M cable - 5 Wks £ 290.33

View
MS13-0055 Linear Potentiometer MS-13M 0-25mm 4-20mA IP67 1M cable - 5 Wks £ 268.42

View
MS13-0056 Linear Potentiometer MS-13M 0-50mm 4-20mA IP67 1M cable - 5 Wks £ 268.42

View
MS13-0057 Linear Potentiometer MS-13M 0-75mm 4-20mA IP67 1M cable - 5 Wks £ 268.42

View
MS13-0058 Linear Potentiometer MS-13M 0-100mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0059 Linear Potentiometer MS-13M 0-125mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0060 Linear Potentiometer MS-13M 0-150mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0061 Linear Potentiometer MS-13M 0-175mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0062 Linear Potentiometer MS-13M 0-200mm 4-20mA IP67 1M cable - 5 Wks £ 286.68

View
MS13-0063 Linear Potentiometer MS-13M 0-225mm 4-20mA IP67 1M cable - 5 Wks £ 304.94

View
MS13-0064 Linear Potentiometer MS-13M 0-250mm 4-20mA IP67 1M cable - 5 Wks £ 304.94

View
