SKU Product Title Stock Qty Unit Price
MPM2581-0003 16mm Digital Pressure Capsule 0-15 PSI Gauge SPI 3.3V 10 £76.00
View Product Information
MPM2581-0005 16mm Digital Pressure Capsule 0-50 PSI Gauge SPI 3.3V 10 £76.00
View Product Information
MPM2581-0009 16mm Digital Pressure Capsule 0-500 PSI Gauge SPI 3.3V 10 £76.00
View Product Information
MPM2581-0012 16mm Digital Pressure Capsule 0-15 PSI Absolute SPI 3.3V 10 £76.00
View Product Information
MPM2581-0013 16mm Digital Pressure Capsule 0-30 PSI Absolute SPI 3.3V 15 £76.00
View Product Information
MPM2581-0016 16mm Digital Pressure Capsule 0-150 PSI Absolute SPI 3.3V 10 £76.00
View Product Information
MPM2581-0018 16mm Digital Pressure Capsule 0-500 PSI Absolute SPI 3.3V 10 £76.00
View Product Information
MPM2581-0021 16mm Digital Pressure Capsule 0-15 PSI Gauge I2C 3.3V 10 £76.00
View Product Information
MPM2581-0023 16mm Digital Pressure Capsule 0-50 PSI Gauge I2C 3.3V 10 £76.00
View Product Information
MPM2581-0027 16mm Digital Pressure Capsule 0-500 PSI Gauge I2C 3.3V 10 £76.00
View Product Information
MPM2581-0030 16mm Digital Pressure Capsule 0-15 PSI Absolute I2C 3.3V 10 £76.00
View Product Information
MPM2581-0035 16mm Digital Pressure Capsule 0-300 PSI Absolute I2C 3.3V 10 £76.00
View Product Information
MPM2581-0036 16mm Digital Pressure Capsule 0-500 PSI Absolute I2C 3.3V 10 £76.00
View Product Information
MPM2581-0070 16mm Digital Pressure Capsule 0-150 PSI Absolute I2C 3.3V 10 £76.00
View Product Information

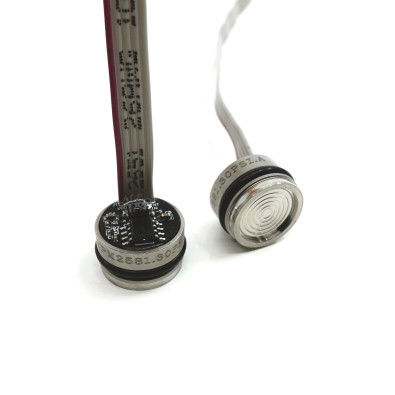

MPM2581 Absolute
MPM2581 Gauge

16mm Digital Pressure & Temperature Sensor I2C or SPI

MPM2581 digital output, pressure sensor

  • Ranges 0 to 500 psi
  • Output I2C or SPI
  • Accuracy 0.25% FS
  • Size 16mm diameter
  • Low power consumption for battery devices

From

£60.80 + VAT Prices May Vary

HELP & ASSISTANCE AVAILABLE ONLINE

£60.80 + VAT

Tiered pricing for the selected product:
Qty Price

Product Description

MPM2581 Digital Output Pressure & Temperature Sensor is a small profile 16mm diameter OEM piezoresistive pressure sensor with 316L stainless steel convoluted diaphragm and isolated oil-filled construction. The 14-bit digital output pressure sensor outputs pressure and temperature data conforming to I2C or SPI interface protocols. Optional 3.3 or 5 VDC supply and low power consumption, this sensor lends itself to multiple applications, especially battery powered devices. It is widely used for various pressure measurements of gases and liquids, compatible with 316L Stainless steel and EPDM. Custom versions can be provided including different O’ring material or oil fill.

Directly replaces the following parts (contact us for custom versions).

I2C SPI
86BSD15PA-3AICL -> MPM2581-03-A-3-0-1-I-L 86BSD15PA-3ASCL -> MPM2581-03-A-3-0-1-S-L
86BSD30PA-3AIC -> MPM2581-07-A-3-0-1-I 86BSD30PA-3ASCL -> MPM2581-07-A-3-0-1-S-L
86BSD150PA-3AIC -> MPM2581-10-A-3-0-1-I 86BSD150PA-3ASCL -> MPM2581-10-A-3-0-1-S-L
86BSD300PA-3AICL -> MPM2581-12-A-3-0-1-I-L 86BSD300PA-3ASCL -> MPM2581-12-A-3-0-1-S-L
86BSD500PA-3AICL -> MPM2581-13-A-3-0-1-I-L 86BSD500PA-3ASCL -> MPM2581-13-A-3-0-1-S-L
86BSD15PG-3AICLT -> MPM2581-03-G-3-0-1-I-L 86BSD15PG-3ASCLT -> MPM2581-03-A-3-0-1-S-L
86BSD50PG-3AICLT -> MPM2581-08-G-3-0-1-I-L 86BSD50PG-3ASCLT -> MPM2581-08-G-3-0-1-S-L
86BSD500PG-3AICLT -> MPM2581-13-G-3-0-1-I-L 86BSD500PG-3ASCLT -> MPM2581-13-G-3-0-1-S-L



SKU

SKU

MPM2581
Linearity

Linearity

0.25% FS
Output Type

Output Type

10-90 %
Power Supply

Power Supply

3.3 VDC
Response Time

Response Time

10 m/s maximum
Compensated Temperature

Compensated Temperature

0°C to +50°C
Operating Temperature

Operating Temperature

-20°C to +105°C
Dimensions

Dimensions

Body Diameter 16mm
Electrical Connection

Electrical Connection

160mm cable Molex plug-in
Mechanical Interface

Mechanical Interface

16mm Diameter O'ring sealed
O'ring

O'ring

EPDM
Wetted Parts

Wetted Parts

316L Stainless Steel
Lead Time (Weeks)

Lead Time (Weeks)

8
Product Weight

Product Weight

13 grams
Tips & Hints

Tips & Hints

Always set up the Pressure sensor in accordance with the Instruction manual. The low power mode optimizes battery power saving and is a software feature Can be made suitable for drinking water, lower temperatures, if required
RoHS Compliance

RoHS Compliance

Yes
Tariff Code (HTS)

Tariff Code (HTS)

90262020
Statement of Conformity

Statement of Conformity

The product detailed below complies with the specifications published by Strainsense. Where applicable it provides assurance that electrostatic discharge sensitive devices have been handled and packed under conditions that meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
COO Country of Origin

COO Country of Origin

CN

Product Features

Technical Resources
Click the resource buttons below to download the file.

Product Applications

Stock Quantity

SKU Product Title Stock Qty Lead Time Unit Price
MPM2581-0001 16mm Digital Pressure Capsule 0-5 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0002 16mm Digital Pressure Capsule 0-10 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0003 16mm Digital Pressure Capsule 0-15 PSI Gauge SPI 3.3V 10 - £ 76.00

View
MPM2581-0004 16mm Digital Pressure Capsule 0-30 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0005 16mm Digital Pressure Capsule 0-50 PSI Gauge SPI 3.3V 10 - £ 76.00

View
MPM2581-0006 16mm Digital Pressure Capsule 0-100 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0007 16mm Digital Pressure Capsule 0-150 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0008 16mm Digital Pressure Capsule 0-300 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0009 16mm Digital Pressure Capsule 0-500 PSI Gauge SPI 3.3V 10 - £ 76.00

View
MPM2581-0010 16mm Digital Pressure Capsule 0-5 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0011 16mm Digital Pressure Capsule 0-10 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0012 16mm Digital Pressure Capsule 0-15 PSI Absolute SPI 3.3V 10 - £ 76.00

View
MPM2581-0013 16mm Digital Pressure Capsule 0-30 PSI Absolute SPI 3.3V 15 - £ 76.00

View
MPM2581-0014 16mm Digital Pressure Capsule 0-50 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0015 16mm Digital Pressure Capsule 0-100 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0016 16mm Digital Pressure Capsule 0-150 PSI Absolute SPI 3.3V 10 - £ 76.00

View
MPM2581-0017 16mm Digital Pressure Capsule 0-300 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0018 16mm Digital Pressure Capsule 0-500 PSI Absolute SPI 3.3V 10 - £ 76.00

View
MPM2581-0019 16mm Digital Pressure Capsule 0-5 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0020 16mm Digital Pressure Capsule 0-10 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0021 16mm Digital Pressure Capsule 0-15 PSI Gauge I2C 3.3V 10 - £ 76.00

View
MPM2581-0022 16mm Digital Pressure Capsule 0-30 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0023 16mm Digital Pressure Capsule 0-50 PSI Gauge I2C 3.3V 10 - £ 76.00

View
MPM2581-0024 16mm Digital Pressure Capsule 0-100 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0025 16mm Digital Pressure Capsule 0-150 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0026 16mm Digital Pressure Capsule 0-300 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0027 16mm Digital Pressure Capsule 0-500 PSI Gauge I2C 3.3V 10 - £ 76.00

View
MPM2581-0028 16mm Digital Pressure Capsule 0-5 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0029 16mm Digital Pressure Capsule 0-10 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0030 16mm Digital Pressure Capsule 0-15 PSI Absolute I2C 3.3V 10 - £ 76.00

View
MPM2581-0031 16mm Digital Pressure Capsule 0-30 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0032 16mm Digital Pressure Capsule 0-50 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0033 16mm Digital Pressure Capsule 0-100 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0034 16mm Digital Pressure Capsule 0-150 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0035 16mm Digital Pressure Capsule 0-300 PSI Absolute I2C 3.3V 10 - £ 76.00

View
MPM2581-0036 16mm Digital Pressure Capsule 0-500 PSI Absolute I2C 3.3V 10 - £ 76.00

View
MPM2581-0037 16mm Digital Pressure Capsule 0-5 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0038 16mm Digital Pressure Capsule 0-10 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0039 16mm Digital Pressure Capsule 0-15 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0040 16mm Digital Pressure Capsule 0-30 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0041 16mm Digital Pressure Capsule 0-50 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0042 16mm Digital Pressure Capsule 0-100 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0043 16mm Digital Pressure Capsule 0-150 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0044 16mm Digital Pressure Capsule 0-300 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0045 16mm Digital Pressure Capsule 0-500 PSI Gauge SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0046 16mm Digital Pressure Capsule 0-5 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0047 16mm Digital Pressure Capsule 0-10 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0048 16mm Digital Pressure Capsule 0-15 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0049 16mm Digital Pressure Capsule 0-30 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0050 16mm Digital Pressure Capsule 0-50 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0051 16mm Digital Pressure Capsule 0-100 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0052 16mm Digital Pressure Capsule 0-150 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0053 16mm Digital Pressure Capsule 0-300 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0054 16mm Digital Pressure Capsule 0-500 PSI Absolute SPI 3.3V - 8 Wks £ 76.00

View
MPM2581-0055 16mm Digital Pressure Capsule 0-5 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0056 16mm Digital Pressure Capsule 0-10 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0057 16mm Digital Pressure Capsule 0-15 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0058 16mm Digital Pressure Capsule 0-30 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0059 16mm Digital Pressure Capsule 0-50 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0060 16mm Digital Pressure Capsule 0-100 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0061 16mm Digital Pressure Capsule 0-150 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0062 16mm Digital Pressure Capsule 0-300 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0063 16mm Digital Pressure Capsule 0-500 PSI Gauge I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0064 16mm Digital Pressure Capsule 0-5 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0065 16mm Digital Pressure Capsule 0-10 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0066 16mm Digital Pressure Capsule 0-15 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0067 16mm Digital Pressure Capsule 0-30 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0068 16mm Digital Pressure Capsule 0-50 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0069 16mm Digital Pressure Capsule 0-100 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0070 16mm Digital Pressure Capsule 0-150 PSI Absolute I2C 3.3V 10 - £ 76.00

View
MPM2581-0071 16mm Digital Pressure Capsule 0-300 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
MPM2581-0072 16mm Digital Pressure Capsule 0-500 PSI Absolute I2C 3.3V - 8 Wks £ 76.00

View
