Hall Effect Rotary Position Sensor

Open Monday - Thursday 8:30 - 17:00 | Friday 8:30 - 16:00

Free UK Shipping For Orders Over £50

Worldwide Shipping

Technical Support

Purchase within to get your order delivered 22nd of May 23rd of May (UK Only)
SKU Product Title Stock Qty Unit Price
MS22H-0003 Hall effect rotary position sensor 90° shaft style D 5 £186.86
View Product Information
MS22H-0004 Hall effect rotary position sensor 180° shaft style D 5 £186.86
View Product Information
MS22H-0005 Hall effect rotary position sensor 360° shaft style D 3 £186.86
View Product Information
MS22H-0008 Hall effect rotary position sensor 90° shaft style F 5 £186.86
View Product Information
MS22H-0009 Hall effect rotary position sensor 180° shaft style F 5 £186.86
View Product Information
MS22H-0010 Hall effect rotary position sensor 360° shaft style F 5 £186.86
View Product Information

Hall Effect Rotary Position Sensor

MS-22H non-contact rotary sensor

  • Ranges from 20° to 360°
  • Single or dual output
  • Rugged construction
  • IP67 dual seal option

Categories: Rotary Potentiometers

From

£158.83 + VAT Prices May Vary

HELP & ASSISTANCE AVAILABLE ONLINE

£158.83 + VAT

Tiered pricing for the selected product:
Qty Price

Product Description

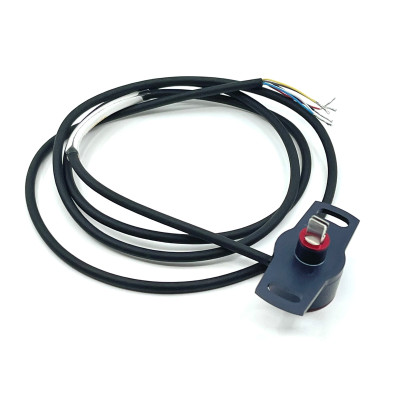

The MS-22H series of 'non-contact' rotary position sensors are designed to withstand the harsh environments of motorsport, testing and industrial applications. Using proven 'Hall Effect' technology, the sensors offer high performance and reliability at operational temperatures up to +150°C. The small and lightweight, 22.5 mm diameter MS-22H is available as either a single output or dual output sensor, with a choice of electrical angle, flange mount and shaft design options.

SKU

SKU

MS-22H
MPN

MPN

MS-22H
Linearity

Linearity

<0.3% of measurement range
MTBF

MTBF

>50 Million cycles (depending on environment)
Resolution

Resolution

12 Bit @ 5 kHz
Supply Voltage

Supply Voltage

5 VDC regulated (optional 6-30V DC unregulated)
Operating Temperature

Operating Temperature

-40°C to +150°C
Environmental Protection

Environmental Protection

IP67
Dimensions

Dimensions

48mm x 22.5mm x 13.5mm
Electrical Connection

Electrical Connection

3 or 6 wire Raychem 55A 26AWG 1 metre
Housing Material

Housing Material

Aluminium, Stainless steel shaft
Max Shaft Velocity

Max Shaft Velocity

600 RPM
Mechanical Angle

Mechanical Angle

Continuous 360° Rotation
Product Weight

Product Weight

44 grams
Tips & Hints

Tips & Hints

Always set up the Rotary Sensors in accordance with the Instruction manual. IP rating assumes cable assembly is fitted. See data sheet for any other technical specifications.
RoHS Compliance

RoHS Compliance

Yes
Tariff Code (HTS)

Tariff Code (HTS)

90318020
Statement of Conformity

Statement of Conformity

The product detailed below complies with the specifications published by Strainsense. Where applicable it provides assurance that electrostatic discharge sensitive devices have been handled and packed under conditions that meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
COO Country of Origin

COO Country of Origin

GB

Product Features

Technical Resources
Click the resource buttons below to download the file.

Product Applications

Stock Quantity

SKU Product Title Stock Qty Lead Time Unit Price
MS22H-0001 Hall effect rotary position sensor 20° shaft style D - 5 Wks £ 186.86

View
MS22H-0002 Hall effect rotary position sensor 45° shaft style D - 5 Wks £ 186.86

View
MS22H-0003 Hall effect rotary position sensor 90° shaft style D 5 - £ 186.86

View
MS22H-0004 Hall effect rotary position sensor 180° shaft style D 5 - £ 186.86

View
MS22H-0005 Hall effect rotary position sensor 360° shaft style D 3 - £ 186.86

View
MS22H-0006 Hall effect rotary position sensor 20° shaft style F - 5 Wks £ 186.86

View
MS22H-0007 Hall effect rotary position sensor 45° shaft style F - 5 Wks £ 186.86

View
MS22H-0008 Hall effect rotary position sensor 90° shaft style F 5 - £ 186.86

View
MS22H-0009 Hall effect rotary position sensor 180° shaft style F 5 - £ 186.86

View
MS22H-0010 Hall effect rotary position sensor 360° shaft style F 5 - £ 186.86

View
