SKU Product Title Stock Qty Unit Price
M20420-0001 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-250 mBar G 3 £102.00
View Product Information
M20420-0004 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1 Bar G 20 £102.00
View Product Information
M20420-0005 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1.6 Bar G 10 £90.00
View Product Information
M20420-0006 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-2.5 Bar G 8 £90.00
View Product Information
M20420-0007 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-4 Bar G 10 £90.00
View Product Information
M20420-0008 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-6 Bar G 4 £90.00
View Product Information
M20420-0009 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-10 Bar G 30 £90.00
View Product Information
M20420-0010 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-16 Bar G 9 £90.00
View Product Information
M20420-0011 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-25 Bar G 10 £90.00
View Product Information
M20420-0012 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-40 Bar SG 6 £90.00
View Product Information
M20420-0013 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-60 Bar SG 10 £90.00
View Product Information
M20420-0014 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-100 Bar SG 10 £90.00
View Product Information
M20420-0016 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-250 Bar SG 10 £102.00
View Product Information
M20420-0017 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-400 Bar SG 20 £102.00
View Product Information
M20420-0018 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-600 Bar SG 10 £102.00
View Product Information
M20420-0019 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1 Bar A 10 £114.00
View Product Information
M20420-0021 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-2.5 Bar A 10 £102.00
View Product Information
M20420-0023 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-6 Bar A 10 £102.00
View Product Information
M20420-0024 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-10 Bar A 10 £102.00
View Product Information
M20420-0026 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-25 Bar A 10 £102.00
View Product Information
M20420-0031 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-250 mBar G 5 £102.00
View Product Information
M20420-0034 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1 Bar G 20 £102.00
View Product Information
M20420-0035 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1.6 Bar G 10 £90.00
View Product Information
M20420-0036 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-2.5 Bar G 10 £90.00
View Product Information
M20420-0037 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-4 Bar G 10 £90.00
View Product Information
M20420-0038 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-6 Bar G 10 £90.00
View Product Information
M20420-0039 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-10 Bar G 30 £90.00
View Product Information
M20420-0040 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-16 Bar G 10 £90.00
View Product Information
M20420-0041 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-25 Bar G 10 £90.00
View Product Information
M20420-0042 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-40 Bar SG 10 £90.00
View Product Information
M20420-0043 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-60 Bar SG 10 £90.00
View Product Information
M20420-0044 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-100 Bar SG 10 £90.00
View Product Information
M20420-0046 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-250 Bar SG 10 £102.00
View Product Information
M20420-0047 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-400 Bar SG 20 £102.00
View Product Information
M20420-0048 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-600 Bar SG 10 £102.00
View Product Information
M20420-0049 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1 Bar A 10 £114.00
View Product Information
M20420-0051 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-2.5 Bar A 10 £102.00
View Product Information
M20420-0053 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-6 Bar A 10 £102.00
View Product Information
M20420-0054 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-10 Bar A 10 £102.00
View Product Information
M20420-0056 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-25 Bar A 10 £102.00
View Product Information

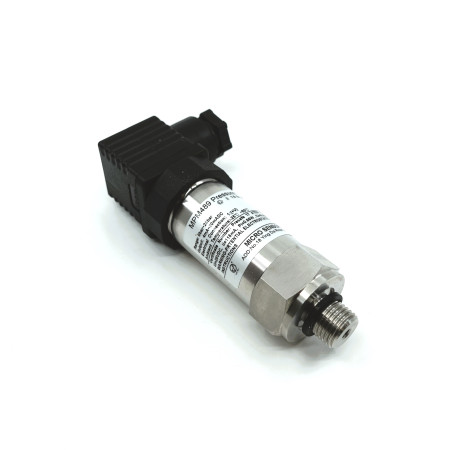

Industrial Pressure Transmitter 4-20mA Gauge/Absolute/Compound

M20 pressure transmitter, compact size

  • Ranges 0-250 mbar to 0-600 bar g, abs, compound
  • Gauge, sealed gauge, absolute and compound ranges
  • Output 4-20mA 2 wire
  • Accuracy ±0.5% FS

From

£72.00 + VAT Prices May Vary

HELP & ASSISTANCE AVAILABLE ONLINE

£72.00 + VAT

Tiered pricing for the selected product:
Qty Price

Product Description

The M20 is a cost effective pressure transmitter for general industrial liquid or gas pressure measurements even in difficult media such a water, refrigerants and mildly corrosive fluids. Based on a modular design, the product is highly configurable and includes options for process connection, electrical connection, outputs, pressure ranges & pressure references. The M20 is compact and offered with a M12 or DIN175301 (Large DIN mate is supplied with screw terminals). Technology is based on reliable all-welded piezo-resistive technology, higher pressure versions 400 bar and above are microfused technology. See other M20 sections for 0-5 and 0-10V output variants. Stock products are available in Gauge, Sealed Gauge, Absolute or Compound pressure ranges, M12 or DIN connectors for total flexibility. Contact us for custom designs.

SKU

SKU

M20420
MPN

MPN

M20 4-20mA
Ingress Protection

Ingress Protection

IP65
Linearity

Linearity

± 0.5% Full Scale
Power Supply

Power Supply

8-30 VDC
Response Time

Response Time

1 m/s maximum
Compensated Temperature

Compensated Temperature

0°C to +50°C
Operating Temperature

Operating Temperature

-30°C to +85°C
Dimensions

Dimensions

68mm x 47mm x 27mm
Mechanical Interface

Mechanical Interface

G1/4" Male (ISO 1179-2)
O'ring

O'ring

Viton/FKM
Wetted Parts

Wetted Parts

316L Stainless Steel
Lead Time (Weeks)

Lead Time (Weeks)

7
Product Weight

Product Weight

93 to 115 Grams
Tips & Hints

Tips & Hints

Always set up the Pressure sensor in accordance with the Instruction manual. IP rating assumes correct fitment of cable to the connector. Contact us for special designs for water cavitation applications.
RoHS Compliance

RoHS Compliance

Yes
Tariff Code (HTS)

Tariff Code (HTS)

90262020
Statement of Conformity

Statement of Conformity

The product detailed below complies with the specifications published by Strainsense. Where applicable it provides assurance that electrostatic discharge sensitive devices have been handled and packed under conditions that meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
COO Country of Origin

COO Country of Origin

CN

Product Features

Technical Resources
Click the resource buttons below to download the file.

Product Applications

Stock Quantity

SKU Product Title Stock Qty Lead Time Unit Price
M20420-0001 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-250 mBar G 3 - £ 102.00

View
M20420-0002 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-400 mBar G - 7 Wks £ 102.00

View
M20420-0003 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-600 mBar G - 7 Wks £ 102.00

View
M20420-0004 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1 Bar G 20 - £ 102.00

View
M20420-0005 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1.6 Bar G 10 - £ 90.00

View
M20420-0006 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-2.5 Bar G 8 - £ 90.00

View
M20420-0007 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-4 Bar G 10 - £ 90.00

View
M20420-0008 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-6 Bar G 4 - £ 90.00

View
M20420-0009 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-10 Bar G 30 - £ 90.00

View
M20420-0010 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-16 Bar G 9 - £ 90.00

View
M20420-0011 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-25 Bar G 10 - £ 90.00

View
M20420-0012 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-40 Bar SG 6 - £ 90.00

View
M20420-0013 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-60 Bar SG 10 - £ 90.00

View
M20420-0014 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-100 Bar SG 10 - £ 90.00

View
M20420-0015 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-160 Bar SG - 7 Wks £ 90.00

View
M20420-0016 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-250 Bar SG 10 - £ 102.00

View
M20420-0017 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-400 Bar SG 20 - £ 102.00

View
M20420-0018 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-600 Bar SG 10 - £ 102.00

View
M20420-0019 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1 Bar A 10 - £ 114.00

View
M20420-0020 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-1.6 Bar A - 7 Wks £ 102.00

View
M20420-0021 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-2.5 Bar A 10 - £ 102.00

View
M20420-0022 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-4 Bar A - 7 Wks £ 102.00

View
M20420-0023 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-6 Bar A 10 - £ 102.00

View
M20420-0024 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-10 Bar A 10 - £ 102.00

View
M20420-0025 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-16 Bar A - 7 Wks £ 102.00

View
M20420-0026 Industrial Pressure Tx 4-20mA G1/4 DIN175301 0-25 Bar A 10 - £ 102.00

View
M20420-0027 Industrial Pressure Tx 4-20mA G1/4 DIN175301 -1-5 Bar Compound - 7 Wks £ 102.00

View
M20420-0028 Industrial Pressure Tx 4-20mA G1/4 DIN175301 -1-9 Bar Compound - 7 Wks £ 102.00

View
M20420-0029 Industrial Pressure Tx 4-20mA G1/4 DIN175301 -1-15 Bar Compound - 7 Wks £ 102.00

View
M20420-0030 Industrial Pressure Tx 4-20mA G1/4 DIN175301 -1-24 Bar Compound - 7 Wks £ 102.00

View
M20420-0031 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-250 mBar G 5 - £ 102.00

View
M20420-0032 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-400 mBar G - 7 Wks £ 102.00

View
M20420-0033 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-600 mBar G - 7 Wks £ 102.00

View
M20420-0034 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1 Bar G 20 - £ 102.00

View
M20420-0035 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1.6 Bar G 10 - £ 90.00

View
M20420-0036 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-2.5 Bar G 10 - £ 90.00

View
M20420-0037 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-4 Bar G 10 - £ 90.00

View
M20420-0038 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-6 Bar G 10 - £ 90.00

View
M20420-0039 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-10 Bar G 30 - £ 90.00

View
M20420-0040 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-16 Bar G 10 - £ 90.00

View
M20420-0041 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-25 Bar G 10 - £ 90.00

View
M20420-0042 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-40 Bar SG 10 - £ 90.00

View
M20420-0043 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-60 Bar SG 10 - £ 90.00

View
M20420-0044 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-100 Bar SG 10 - £ 90.00

View
M20420-0045 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-160 Bar SG - 7 Wks £ 90.00

View
M20420-0046 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-250 Bar SG 10 - £ 102.00

View
M20420-0047 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-400 Bar SG 20 - £ 102.00

View
M20420-0048 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-600 Bar SG 10 - £ 102.00

View
M20420-0049 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1 Bar A 10 - £ 114.00

View
M20420-0050 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-1.6 Bar A - 7 Wks £ 102.00

View
M20420-0051 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-2.5 Bar A 10 - £ 102.00

View
M20420-0052 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-4 Bar A - 7 Wks £ 102.00

View
M20420-0053 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-6 Bar A 10 - £ 102.00

View
M20420-0054 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-10 Bar A 10 - £ 102.00

View
M20420-0055 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-16 Bar A - 7 Wks £ 102.00

View
M20420-0056 Industrial Pressure Tx 4-20mA G1/4 M12 Connector 0-25 Bar A 10 - £ 102.00

View
M20420-0057 Industrial Pressure Tx 4-20mA G1/4 M12 Connector -1-5 Bar Compound - 7 Wks £ 102.00

View
M20420-0058 Industrial Pressure Tx 4-20mA G1/4 M12 Connector -1-9 Bar Compound - 7 Wks £ 102.00

View
M20420-0059 Industrial Pressure Tx 4-20mA G1/4 M12 Connector -1-15 Bar Compound - 7 Wks £ 102.00

View
M20420-0060 Industrial Pressure Tx 4-20mA G1/4 M12 Connector -1-24 Bar Compound - 7 Wks £ 102.00

View
